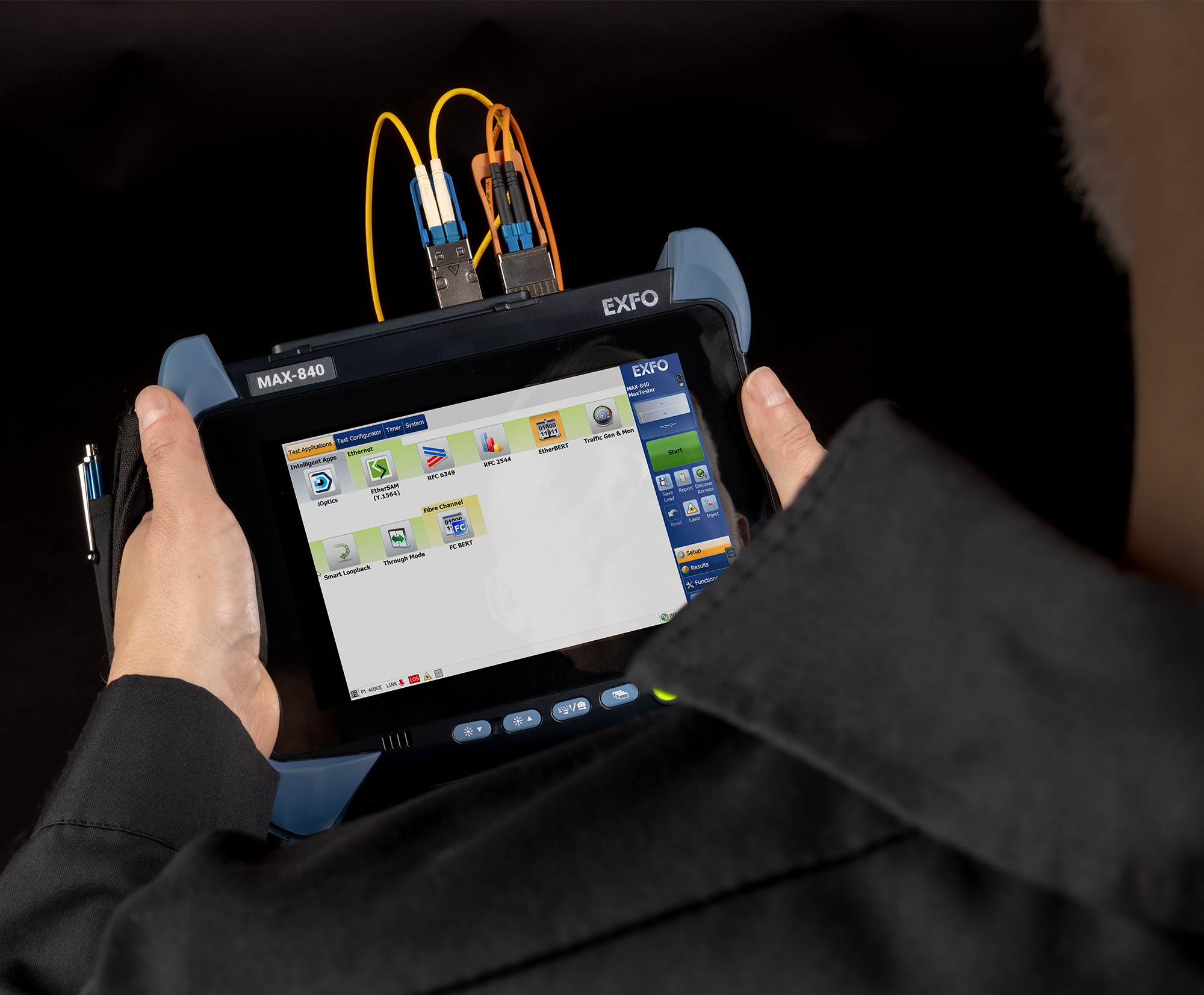

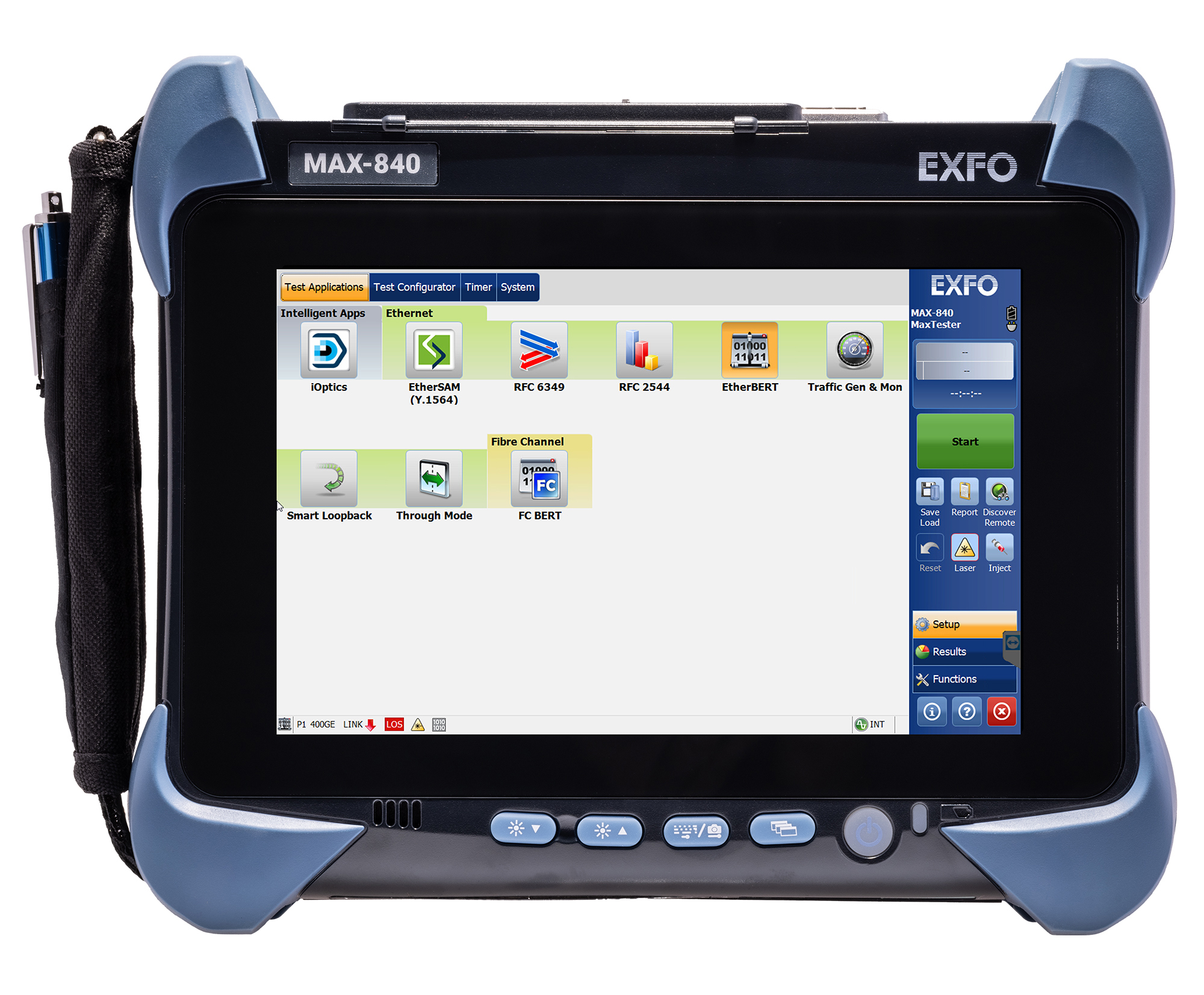

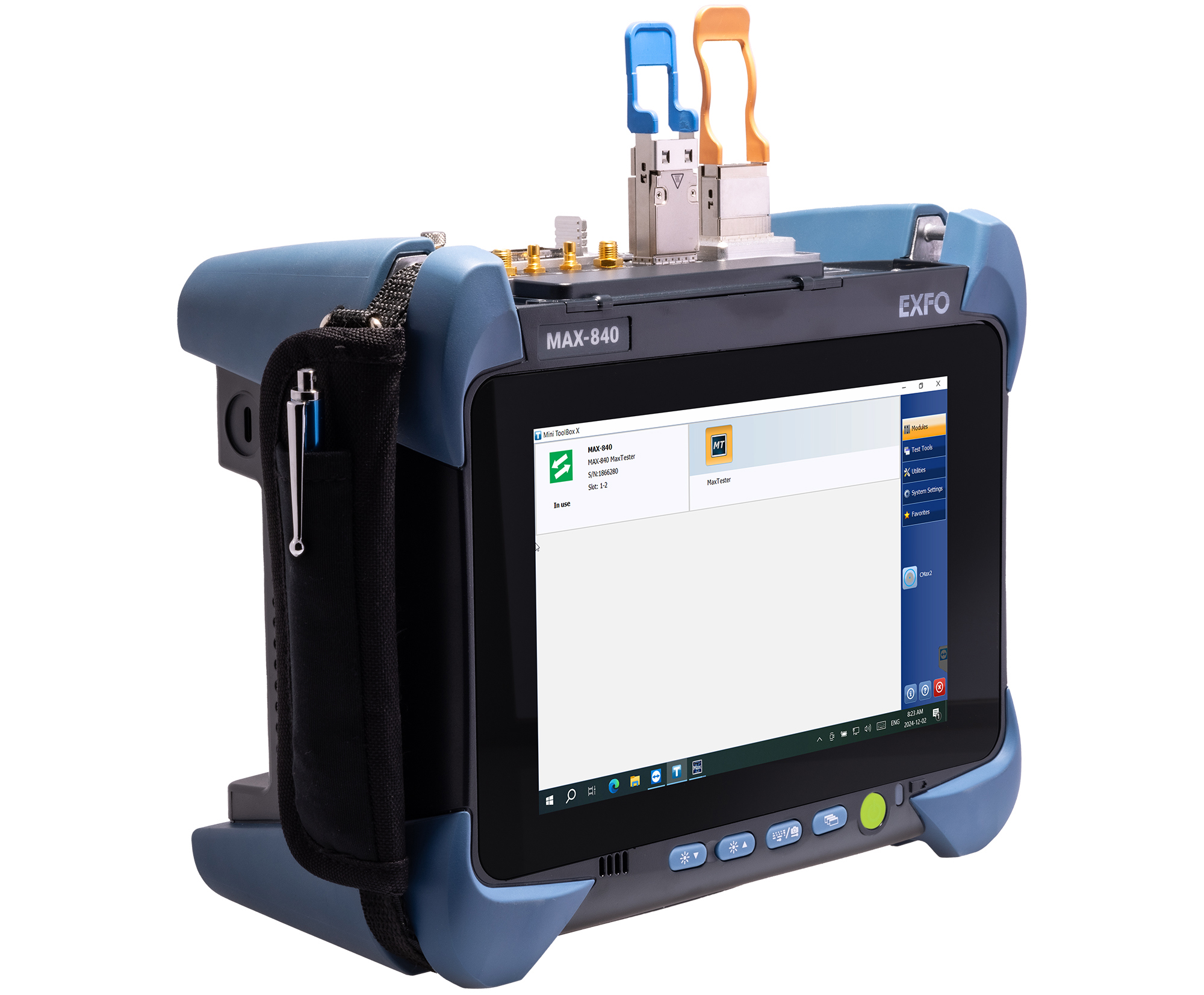

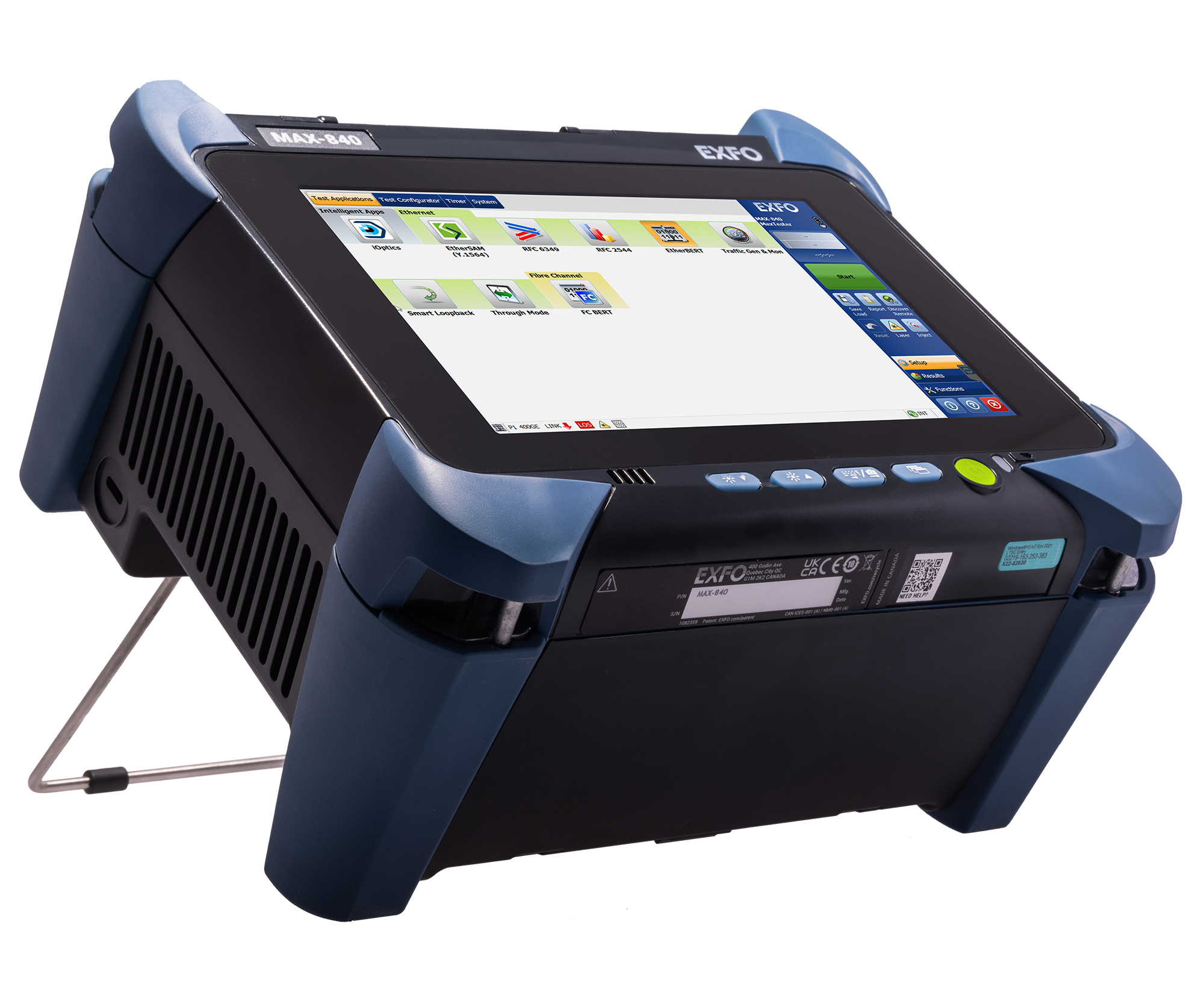

MAX-840 - 400G Ethernet tester with 100G-start option

The ultimate in flexibility with a journey-to-400G design. Go with 400G now, or start with up-to-100G testing, and upgrade to 400G later.

Datenblatt Bedienungsanleitung

Key Features

1G to 400G Ethernet testing capabilities based on IEEE standards

Start with up-to-100G testing and upgrade to 400G later, or go with 400G right now

Fibre Channel testing from 1X to 32X

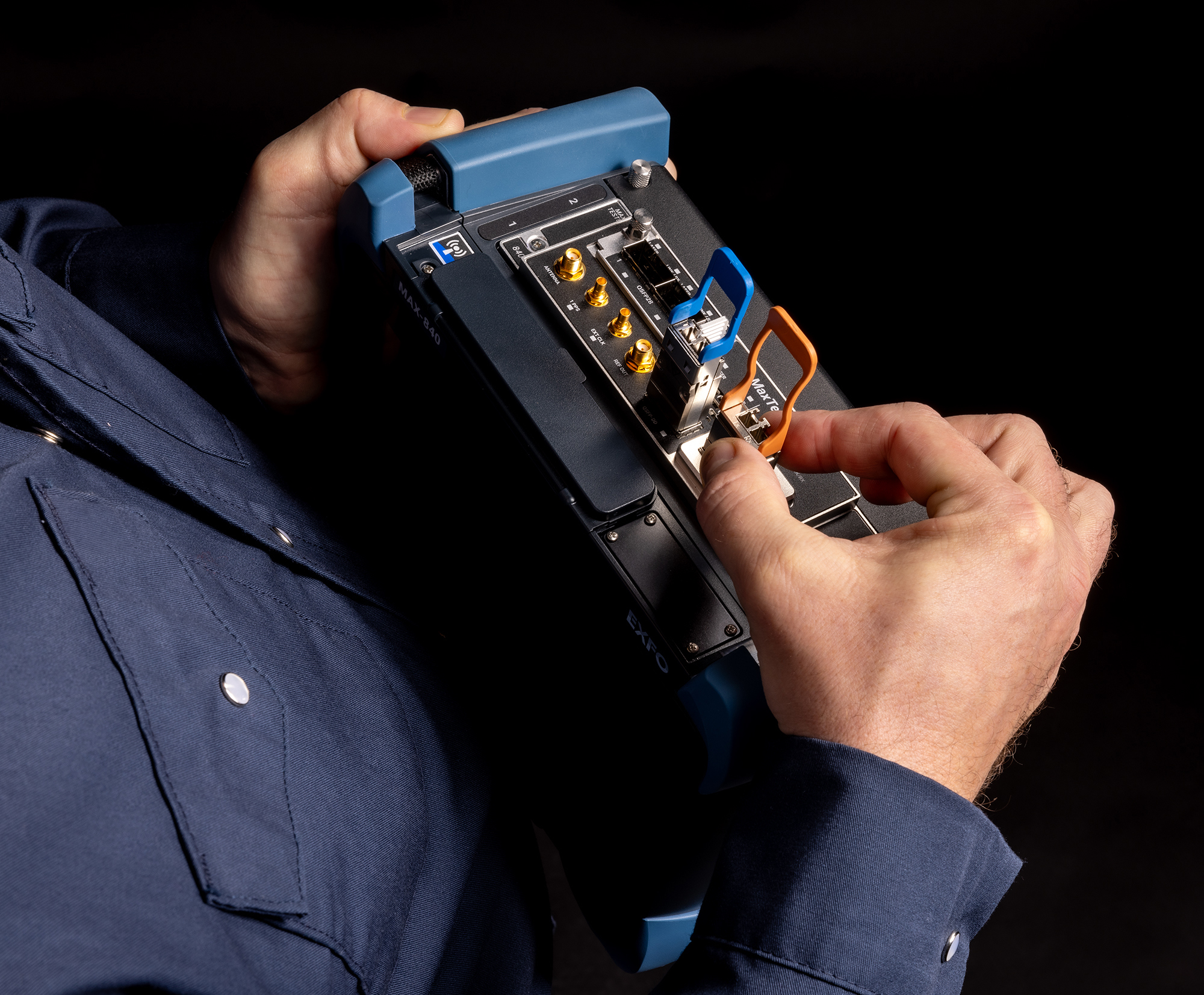

Validate pluggable optics fast, including AOC and DAC cables, with EXFO’s iOptics automated intelligent test application

Automatic plug-and-play transceiver detection with the iOptics test application

Support for the most popular pluggables (QSFP-DD and OSFP) and the latest QSFP112 transceivers

Modular Open Transceiver System (OTS) supports testing of SFP28 or QSFP28 form factors

Built-in cloud-hosted solution EXFO Exchange for test results upload and activity collaboration

Applications

Core and metro-edge network testing

Data centers

4G/5G backhaul testing

Service activation

Specifications

Technical specifications
Exchange compatibility

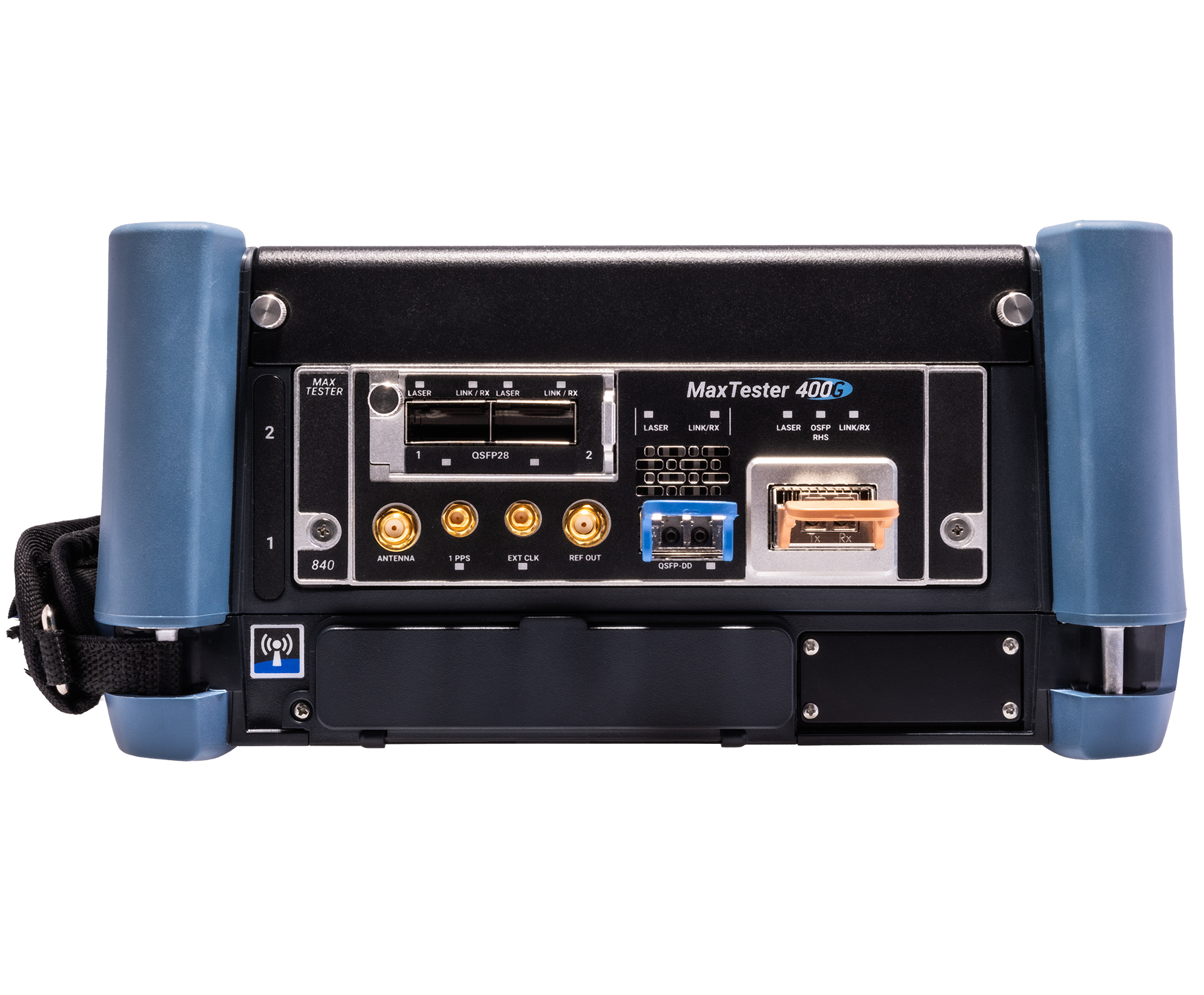

OTS support	SFP28/QSFP28/QSFP-DD/QSFP112/OSFP
Supported data rates	Up to 400G
Test Type	Fibre channel/Ethernet

Datenblatt

Start your 400G journey, your way.

The MAX-840 Ethernet tester is a go-anywhere compact, upgradeable solution including 1G to 400G Ethernet testing capabilities based on the latest IEEE standards. It features a journey-to-400G design for ultimate flexibility; go with 400G now or start with up-to-100G testing and upgrade to 400G later. Covering the basics, it includes EtherBERT, TGEN, BERT, RFC2544, Fibre Channel (1X – 32X) and other core testing requirements. It supports a wide range of pluggable transceiver form factors, including SFP28, QSFP28, QSFP-DD, QSFP112, and OSFP. The MAX-840 includes iOptics, an intelligent pluggable optics test application that can quickly validate any pluggable transceiver from 1G to 400G, as needed.

Key features

1G to 400G Ethernet testing capabilities based on IEEE standards

Start with up-to-100G testing and upgrade to 400G later, or go with 400G right now

Fibre Channel testing from 1X to 32X

Validate pluggable optics fast, including AOC and DAC cables, with EXFO’s iOptics automated intelligent test application

Automatic plug-and-play transceiver detection with the iOptics test application

Support for the most popular pluggables (QSFP-DD and OSFP) and the latest QSFP112 transceivers

Modular Open Transceiver System (OTS) supports testing of SFP28 or QSFP28 form factors

Built-in cloud-hosted solution EXFO Exchange for test results upload and activity collaboration

Applications

Core and metro-edge network testing

Data center testing

4G/5G backhaul testing

Service activation testing
