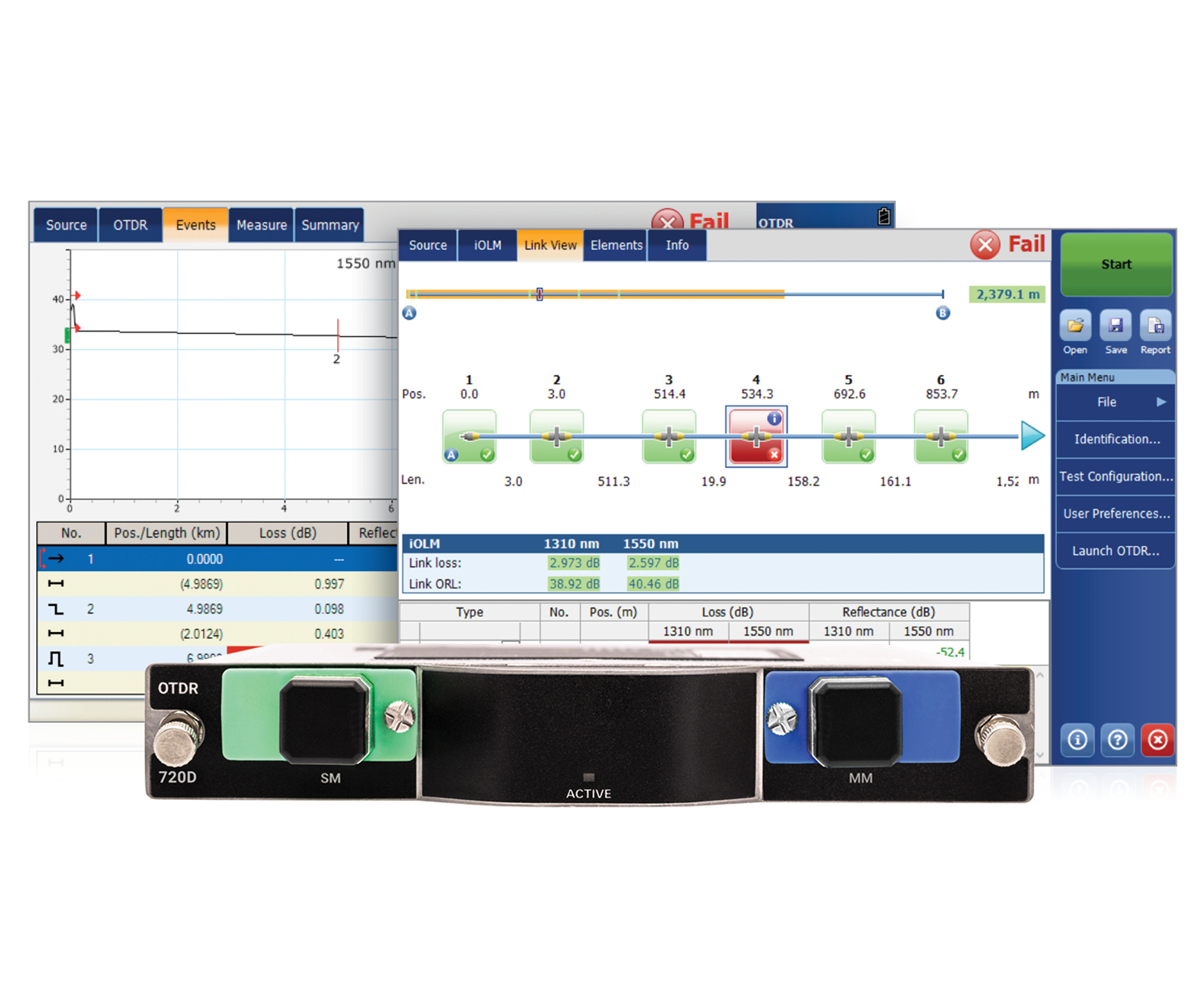

FTBx-720D - LAN/WAN access OTDR

Purpose-built construction OTDRs for everyday field testing in any access network. With an intelligent Optical Link Mapper (iOLM) application for both singlemode and multimode testing, this is the most automated and intelligent troubleshooting tool for FTTA, LAN and data centers.

Datenblatt Bedienungsanleitung

Key Features

Dynamic range of up to 36 dB in singlemode and 29 dB in multimode

Quad singlemode/multimode version

FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime

iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format

OTDR, light source and power checker through single port to optimize the fiber handling process.

Applications

Access network construction and troubleshooting

FTTx/PON testing though splitters (up to 1x32)

FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON

Central office link certification

Data center and private networks

LAN/WAN characterization

Fronthaul/backhaul

Specifications

Technical specifications
Calibrated wavelengths	850/1300/1310/1550/1650
Dynamic range (dB)	36 dB in singlemode (SM), 29 dB in multimode (MM)
Exchange compatibility
iOLM-ready
Product type	Module

Datenblatt

Full Description

The FTBx-720D is an OTDR that is best suited for most typical short and access networks. It can perform both singlemode and multimode testing.

The FTBx-720D is designed for fronthaul/backhaul applications (FTTA, DAS, RRH, small cells), Tier-2 certification in data centers, enterprise and access networks, PON characterization and more.

The FTBx-720D test module is hosted within EXFO’s compact modular platforms that can also be equipped with other testing capabilities such as Ethernet, CPRI or copper testing to provide a complete test solution for FTTA contractors.

The FTBx-720D advantage

Accurately pinpoint faulty connectors or fiber breaks on short spans thanks to optimized multimode performance.
Multimode units are quad-ready to enable singlemode testing.
User-friendly graphical user interface.
