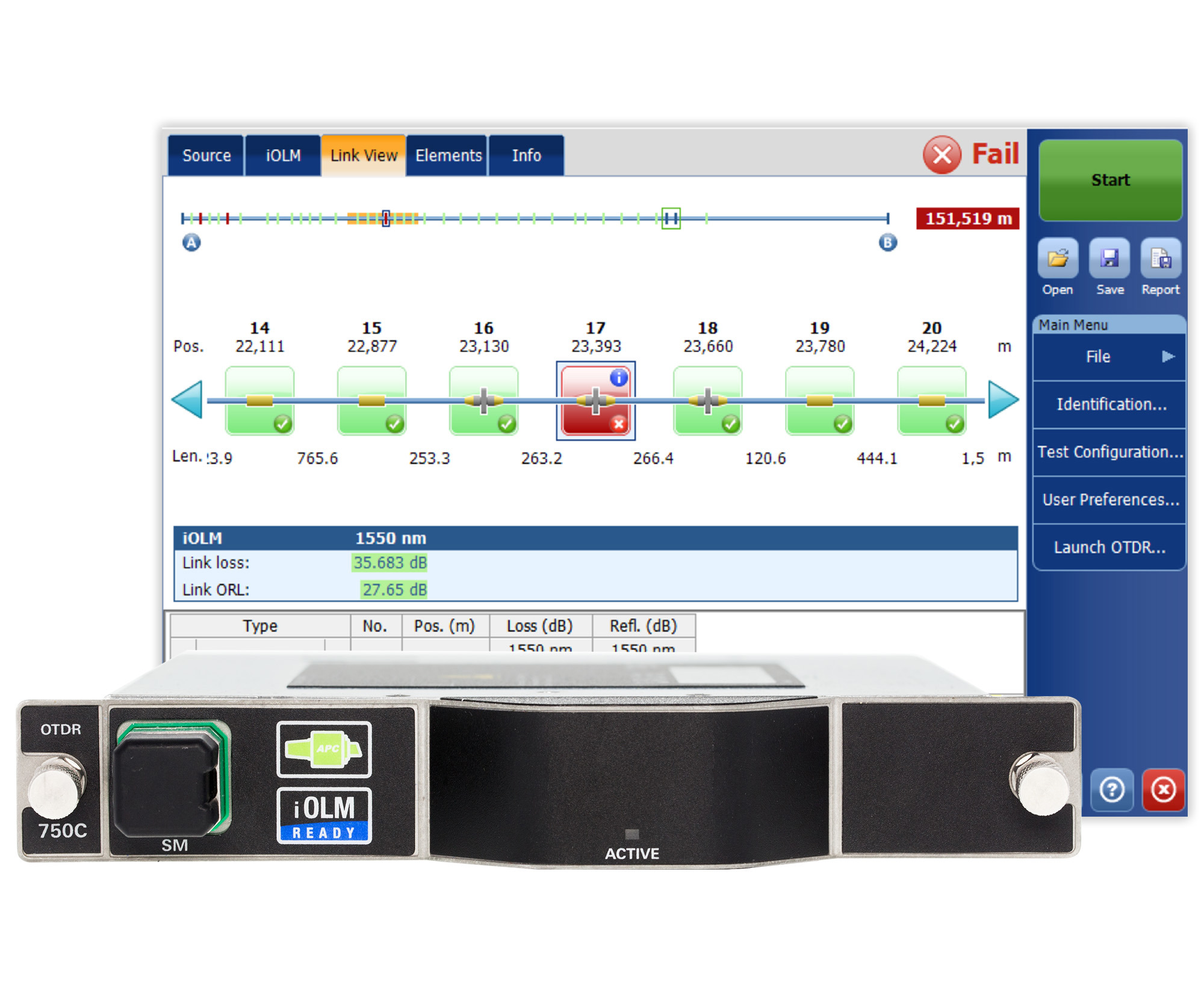

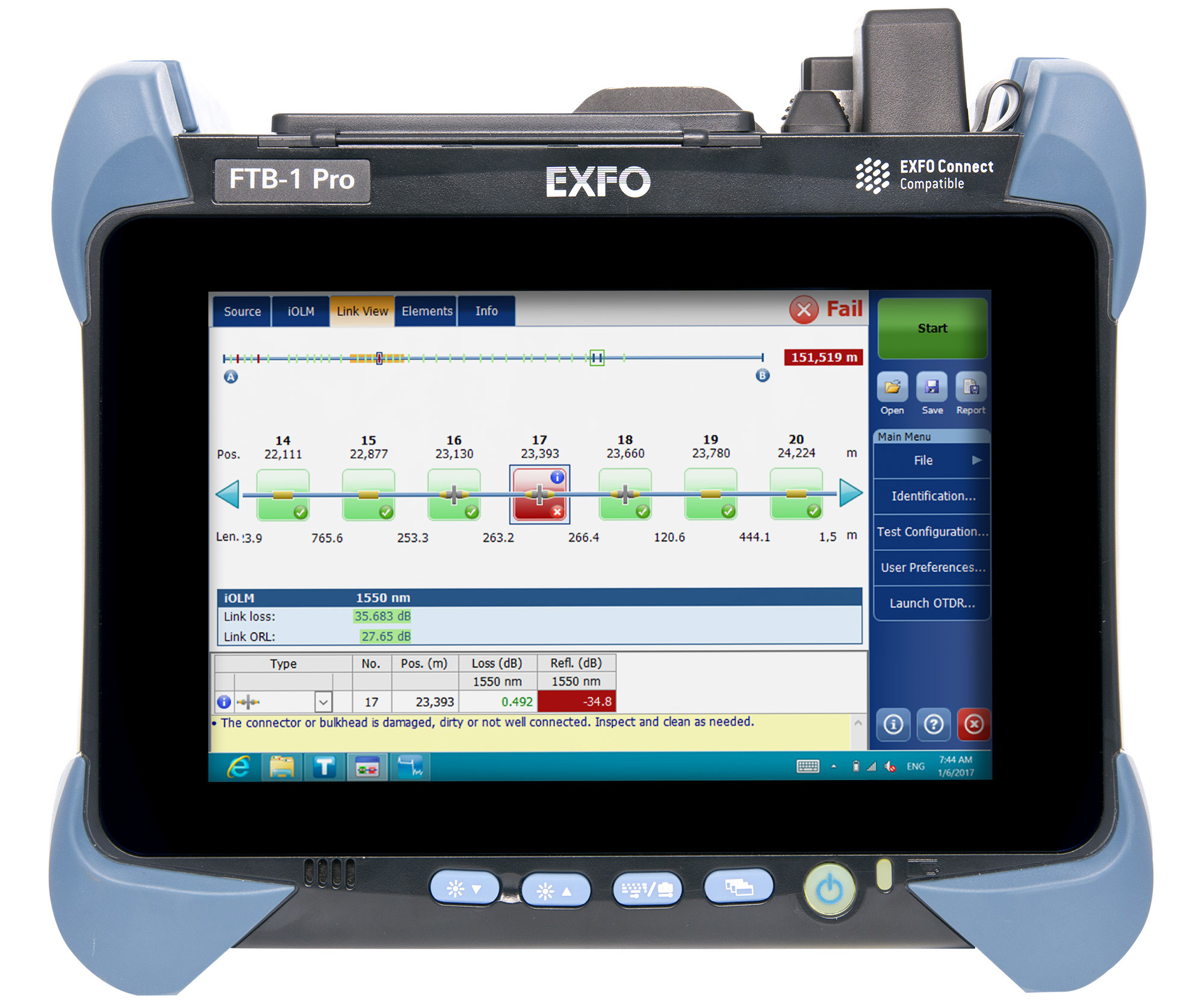

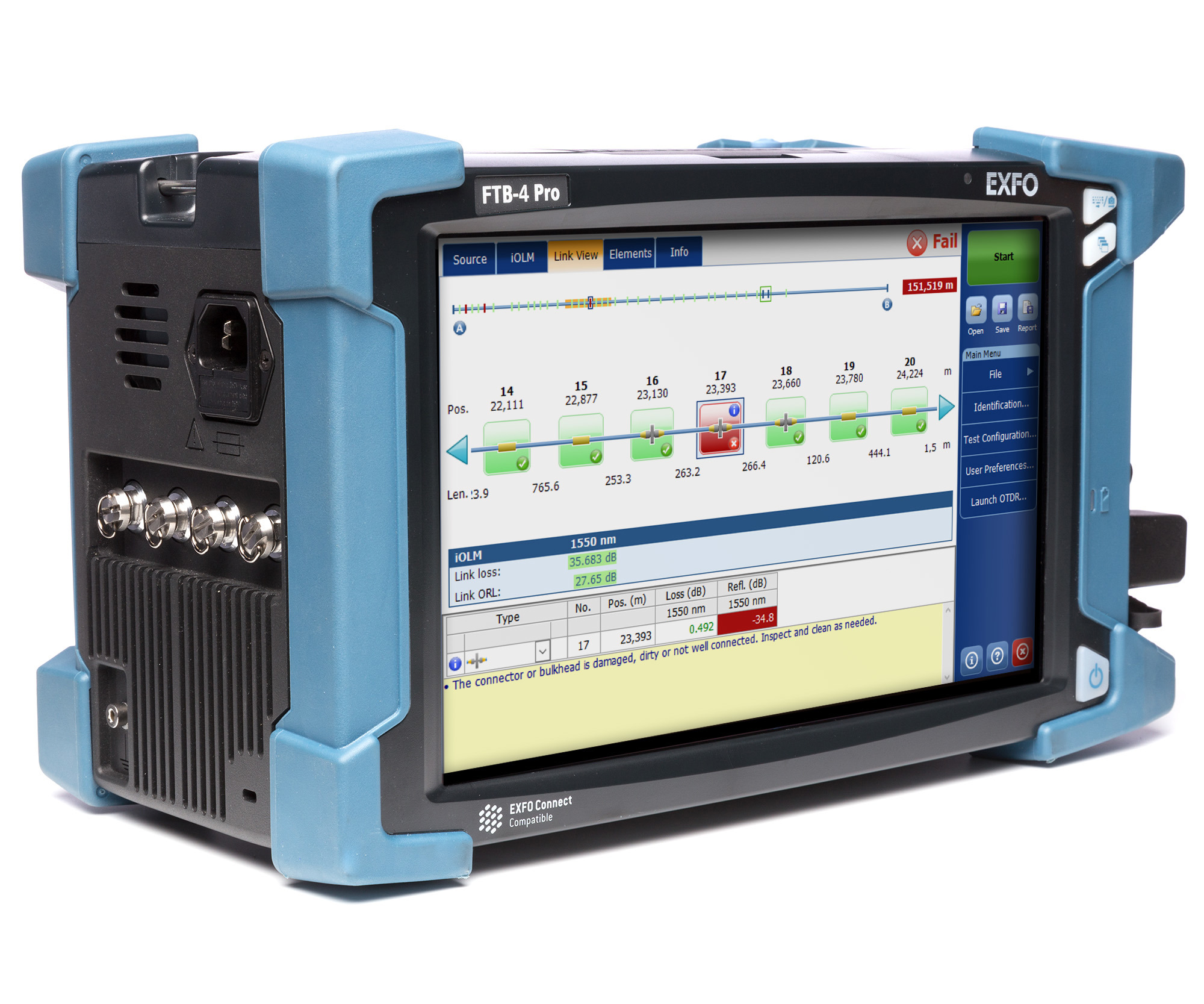

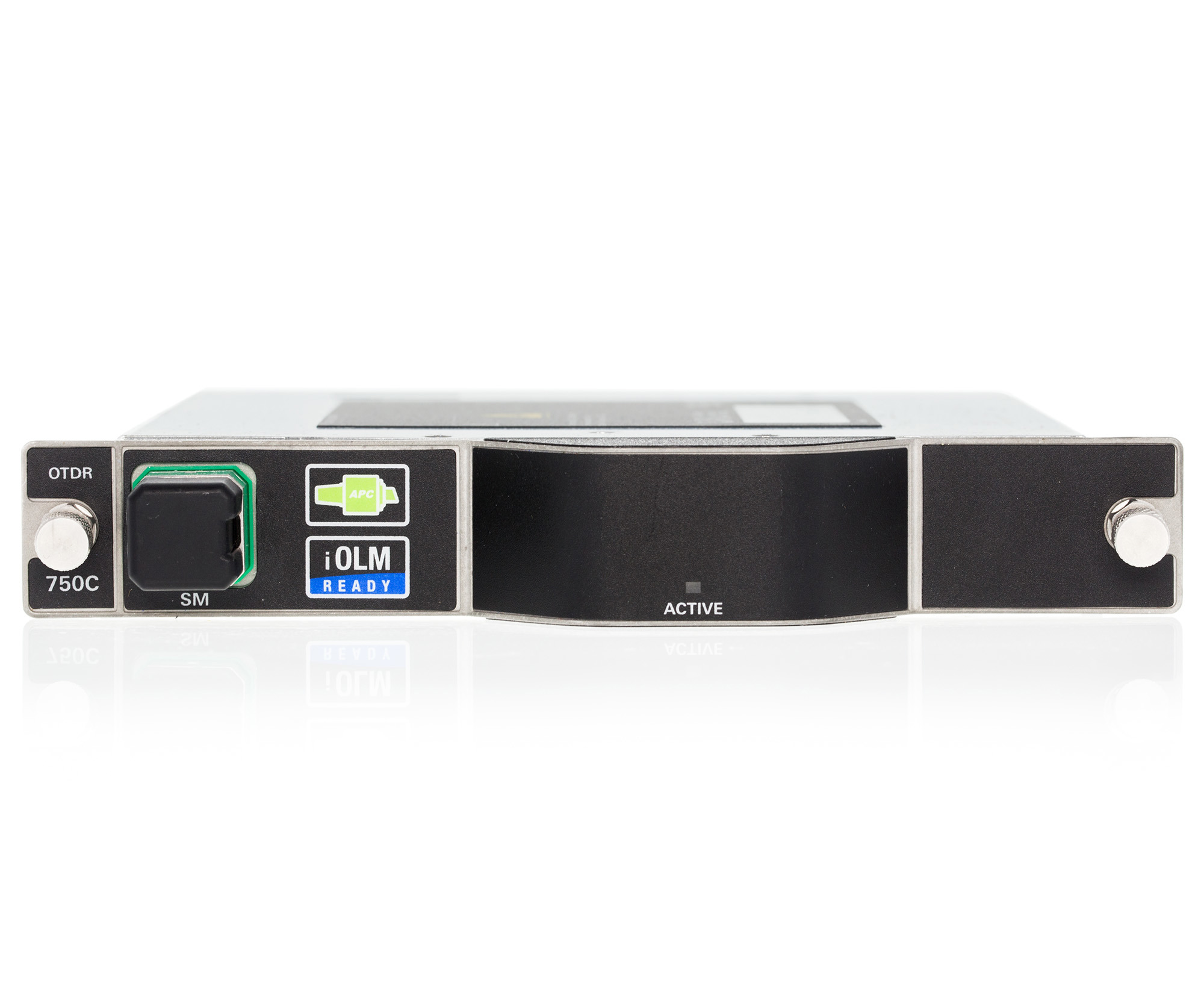

FTBx-750C - metro/longhaul OTDR

High dynamic range combined with high resolution for highly accurate fiber characterization

Datenblatt Bedienungsanleitung

Key Features

Dynamic range of up to 46 dB
Event dead zone of 0.5 m and attenuation dead zone of 2.5 m
Up to 256 000 sampling points
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database

Applications

Long-haul
Manufacturing automation
Metro

Specifications

Technical specifications
Calibrated wavelengths 1310/1550/1625
Dynamic range (dB) 46 dB
Exchange compatibility

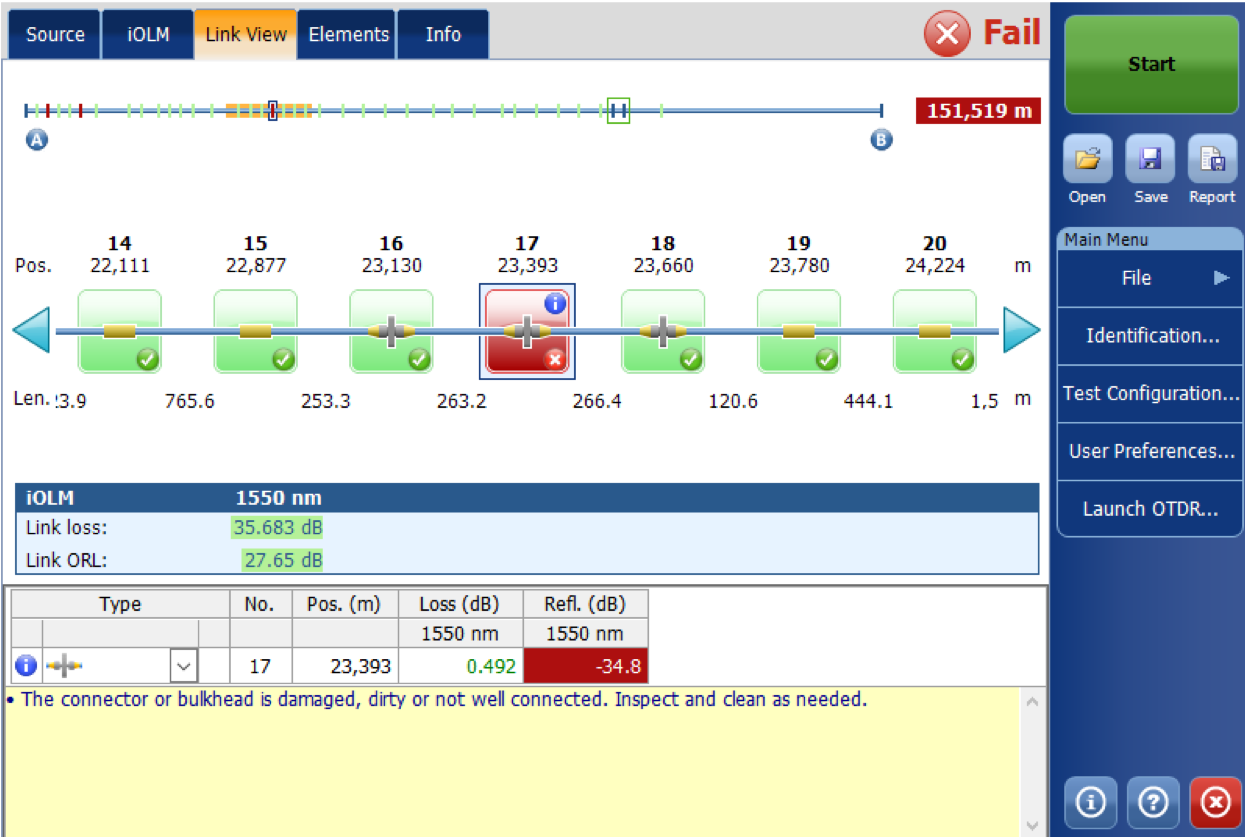

iOLM-ready
Product type Module
Test Type Fault location/Fiber characterization/Fiber length/Loss/ORL
