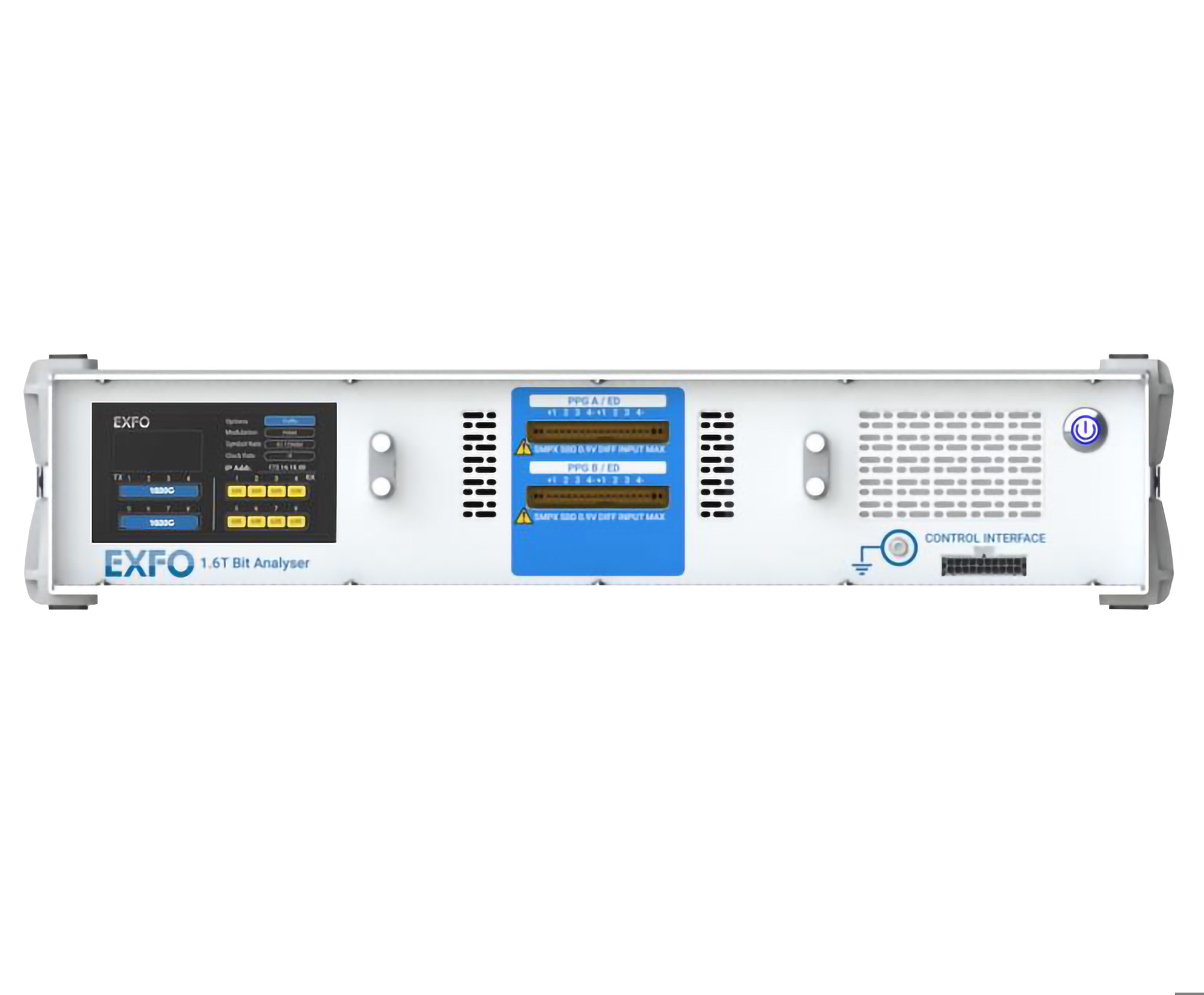

BA-1600 - 1.6T Bit Analyzer

Key features

High performance signal integrity and BER test function

Powerful and user-friendly GUI

PAM4 support

FEC generation and analysis

Channel PAM4 histogram

Channel mapping

I2C register read/write access

Save and load functionality for all applicable parameters

Automation

Applications

Test and validation of 1.6T transceivers

Testing high throughput in manufacturing

800G/1.6T interconnect testing

Hyperscalers and AI data centers

Description

The BA-1600 1.6T Bit Analyzer provides full lifecycle coverage from lab to fab, delivering both speed and simplicity through API-controlled automation. It supports 8-channel PAM4 coding with data rates of 106.25, 53.125, and 26.5625 GBd per lane.

The BA-1600 1.6T Bit Analyzer in a nutshell:

Supports 1.6T PAM4 testing as an electrical BERT.
Validates 1.6T Ethernet for R&D, production, and test labs.
Enables FEC generation and analysis.

Take 1.6T from lab to fab, and beyond

The move to 1.6T is transforming networking through advancements in transceiver technology and disaggregated networks. These innovations tackle scalability, efficiency, and cost challenges while enabling critical connectivity for AI. Implementing 1.6T requires rigorous testing for seamless integration and compatibility with existing infrastructure.
