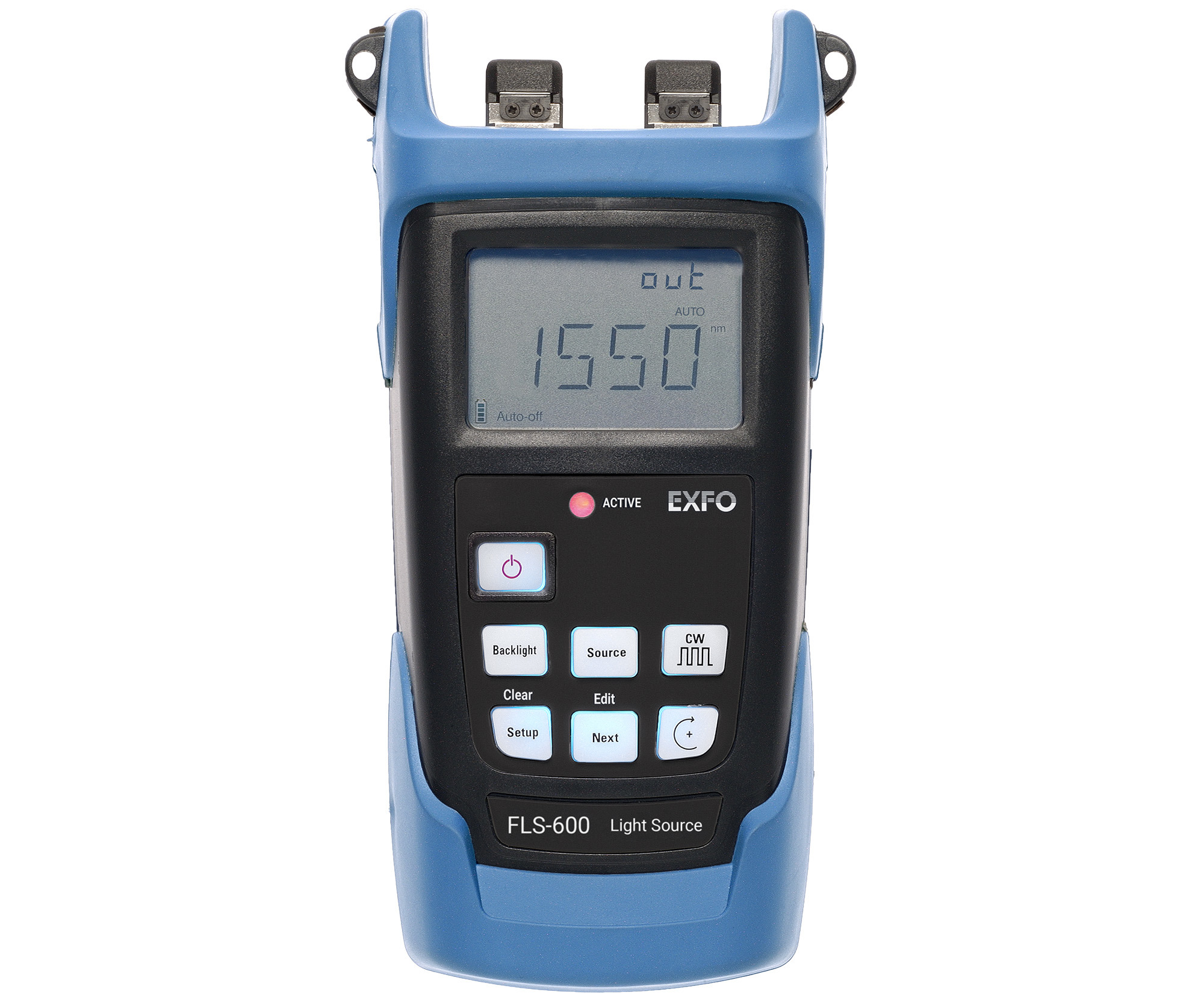

FLS-600 - 光源

作为EXFO的600手持式设备系列的一员，FLS-600光源以实现非常高的通用性为设计理念。提供有激光器、LED 型号以及多个波长供您选择。

规格书用户手册

Key Features

一个端口上最多提供三种单模波长（1310、1550和1490或1625 nm），或两个端口上最多提供四种波长（850/1300 nm和1310/1550 nm）

三年质量保证，实现较低的拥有成本

无差错且省时的测试功能

受控多模发射输出

符合EF：使用外接发射模式调节装置，提供符合EF规范的多模结果

Applications

链路损耗鉴定

LAN/WAN验证

Specifications

Technical specifications
Auto-Wavelength Switching
Calibrated wavelengths	850/1300/1310/1490/1550/1625
Fiber Connector Type	ST/SC/LC/E2000
Fiber Type	Singlemode/Multimode
Product type	Handheld
Test Type	Fiber continuity/Link-loss characterization
Tone Detection
Visual Fault Locator (VFL)

规格书

Full Description

Part of EXFO’s 600 handheld series, the FLS-600 Light Source is designed for first-class versatility. Choose among laser, LED models, as well as various wavelength options. What’s more, you can save time by building a list of your “favorite” wavelengths and only sweeping through these wavelengths when testing.

Automatic wavelength switching

Using the FLS-600 in Auto-Switching Mode allows to automatically toggle between available wavelengths. When using this source with a compatible power meter (Optical Power Expert/FOT-600), the latter recognizes the wavelength in use and switches to the proper calibration parameter.

Distant referencing

Signal encrypting can also give the receiving-end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.

FTTx-ready

EXFO’s FLS-600 allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs.

Rugged and versatile

Like all EXFO portable instruments, the FLS-600 is built for ruggedness, perfect for the harshest test conditions. It also features a backlit keypad/LCD , for easy operation in darker environments.
